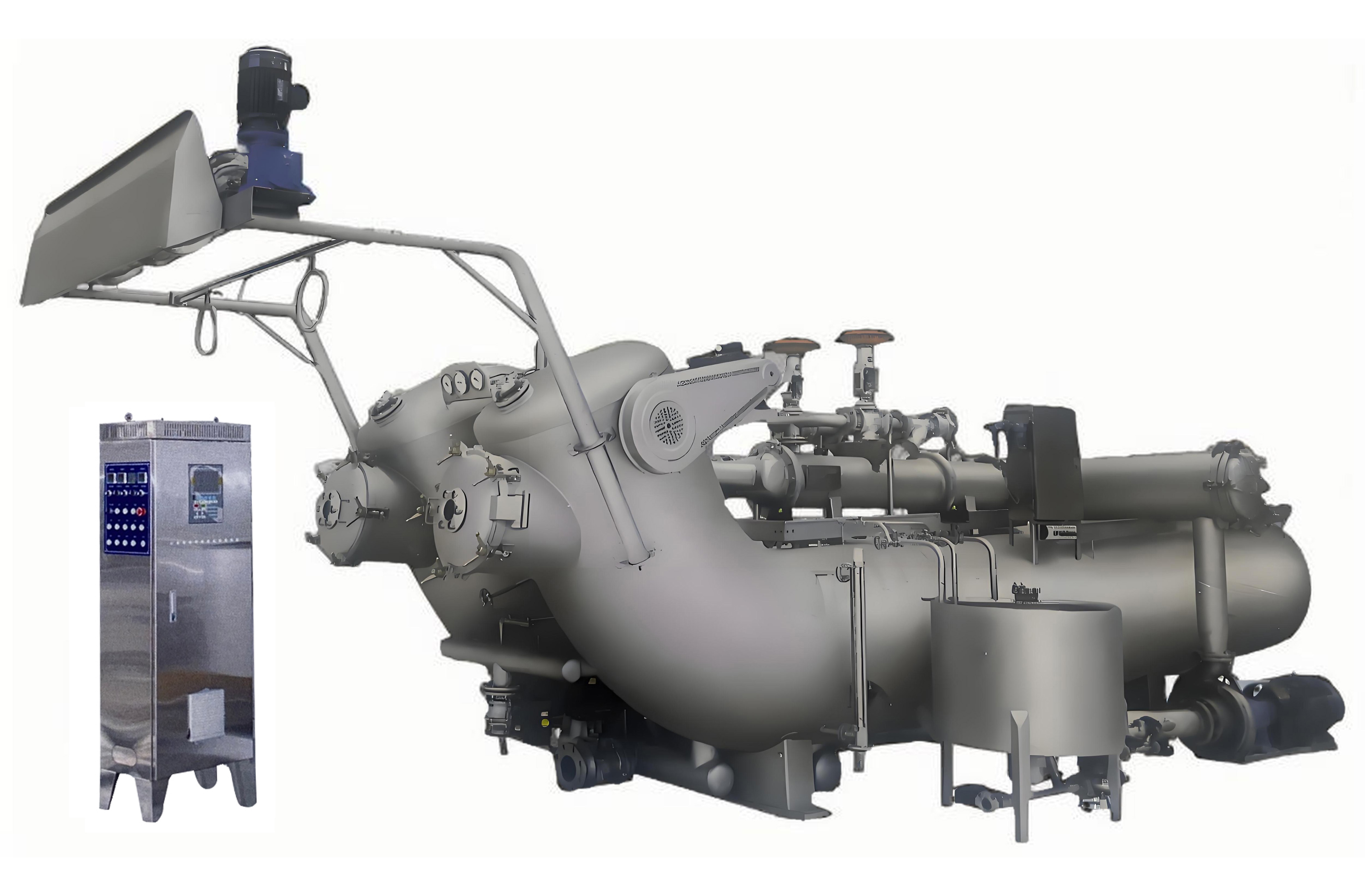

RSP-C High-temperature Loose Style Dyeing Machine

The new-generation RSP-C high-temperature slack dyeing machine adopts a unique design concept of a dual liquid flow system with a dual-purpose nozzle that allows for interchange between overflow and jet functions. According to different types of fabrics, simply replacing the appropriate nozzle can transform the liquid flow into a pure overflow-type water flow with low spray pressure, large flow rate, and flexibility, or a pure jet-type liquid flow with high spray pressure and high flow velocity.This machine features a novel structure and wide applications. It can adapt to both knitted and woven fabrics. Moreover, it offers excellent dyeing quality, remarkable effects, low costs, and high efficiency.

advantage

■ Strong adaptability in dyeing: It is applicable for dyeing not only general knitted fabrics but also the latest developed elastic fabrics.

■ Convertible liquid flow: Simply select the appropriate overflow or jet nozzle according to the fabric, and you can obtain the corresponding overflow or jet liquid flow.

■ Large loading capacity: The cylinder has a large interior space and sufficient storage capacity. This reduces the number of dyeing batches and relatively decreases the number of machine cylinders needed for purchase.

■ Low energy consumption: It features a low liquor ratio, minimal emissions, and reduced usage of pigments and auxiliaries. Moreover, it consumes less electricity and steam.

■ Simple operation: The machine has a low height, which makes it convenient to operate.

■ Novel structure: It has a short fabric trough, an internally installed composite conduit, and is designed with a cylinder featuring large curved joints.

■ Excellent effect: The fabric lifting height is low, the tension is small, and the fabric shows high elasticity after dyeing.
