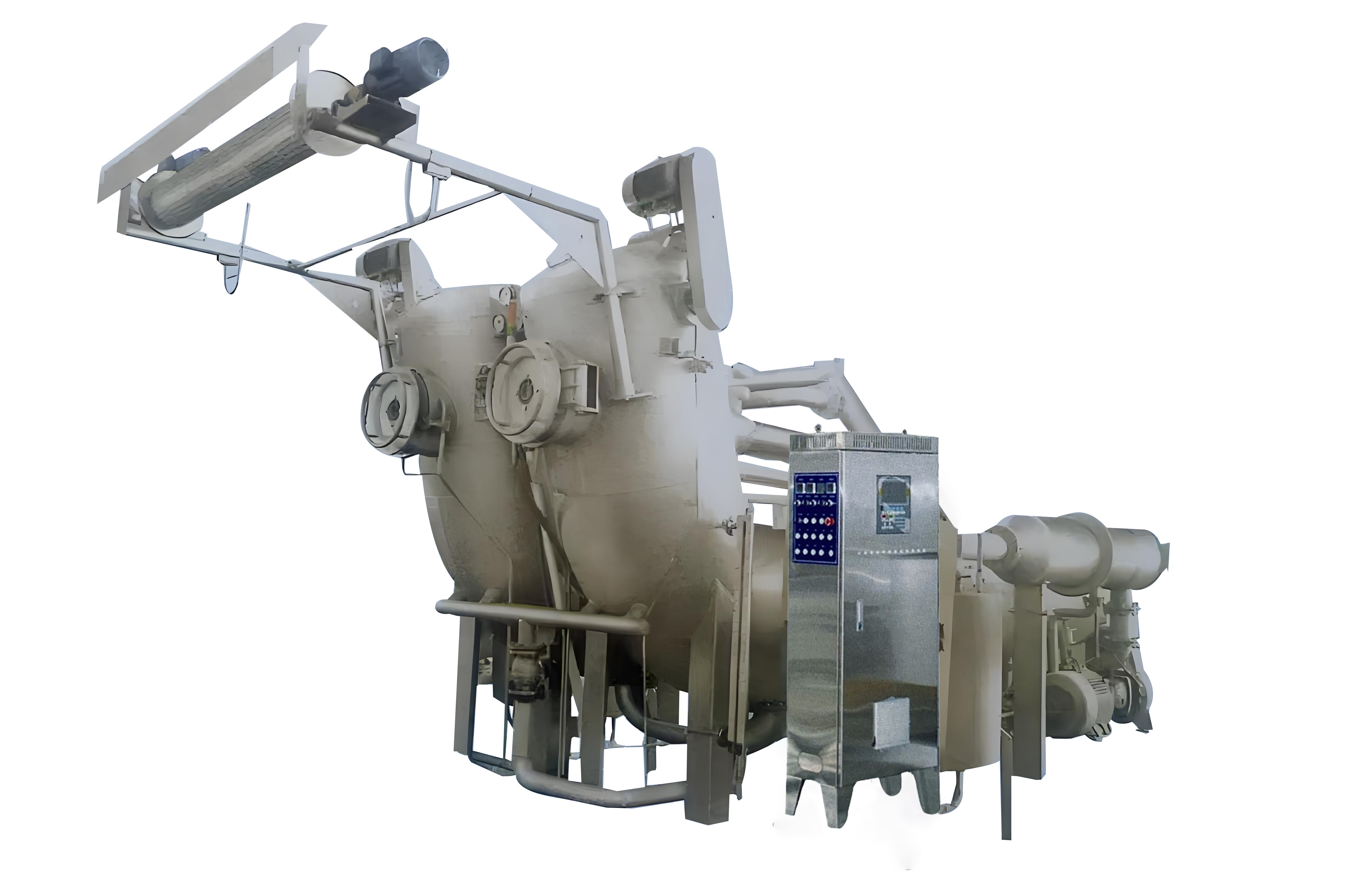

RSP-1B/2B High-temperature Relaxed Dyeing Machine

The new-generation RSP-B type high-temperature loose dyeing machine adopts the unique design concept of a dual liquid flow system with interchangeable overflow and spraying dual-purpose nozzles. According to different types of fabrics, simply by replacing the appropriate nozzles, the liquid flow can be transformed into a pure overflow water flow with low spray pressure, large flow rate and flexibility, or a pure spraying liquid flow with high spray pressure and high flow velocity. This machine has a novel structure and a wide range of applications. It can be suitable for both knitted fabrics and woven fabrics. Moreover, it features excellent dyeing quality, good effects, low cost and high efficiency.

advantage

■ It has excellent dyeing adaptability: it can be used to dye a wide range of fabrics, from ordinary knitted fabrics to newly - developed elastic fabrics.

■ The liquid flow can be converted: Simply select the appropriate overflow or jet nozzle according to the fabric, and you can obtain the corresponding overflow or jet liquid flow.

■ Large loading capacity: With a large space in the cylinder and sufficient storage capacity, it can reduce the number of dyeing batches, and relatively fewer dyeing machines need to be purchased.

■ Low energy consumption: It features a low bath ratio and less discharge. It can save pigments and auxiliaries, and also consumes less electric energy and steam.

■ Simple operation: The machine has a low height, making it convenient to operate.

■ Innovative structure: It has a short fabric trough, is equipped with a built - in composite conduit, and features a large - bend cylinder design.

■ Good effect: The fabric lifting height is low, the tension is small, and it has great elasticity after dyeing.
