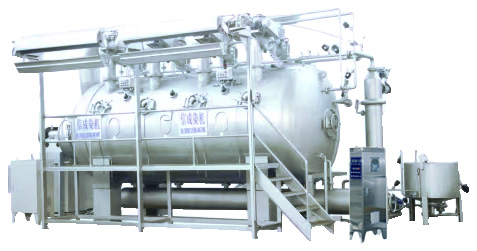

RFP High - temperature Air - flow Atomization Dyeing Machine

0510-83452202

产品详情

The air - flow atomization dyeing machine applies the principle of aerodynamics. The mixed air generated by the blower is injected into the nozzle of the dyeing machine to drive the fabric to run. It differs from the traditional overflow dyeing machine in that the air - flow dyeing machine does not require dye liquor or water as a medium to transport the fabric. During the dyeing process, the airflow generated by the blower enters the nozzle and meets the dye liquor delivered by the main pump inside the nozzle shell, causing the dye liquor to be atomized and then sprayed onto the fabric passing through the nozzle, driving the fabric to run. Therefore, the fabric can achieve a good dyeing effect in the dye liquor. It causes no damage to the fabric, and the fabric will not have creases after dyeing and has a good hand feel.

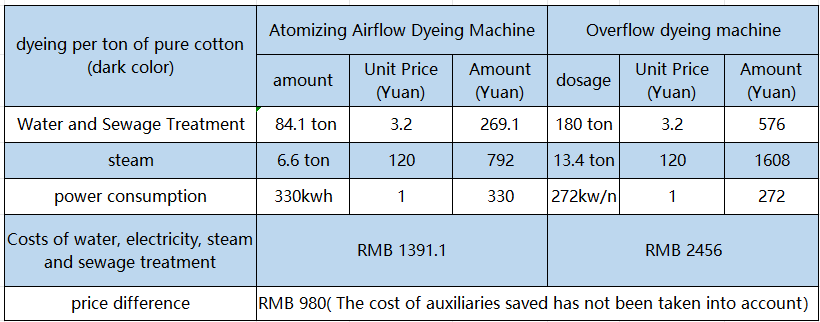

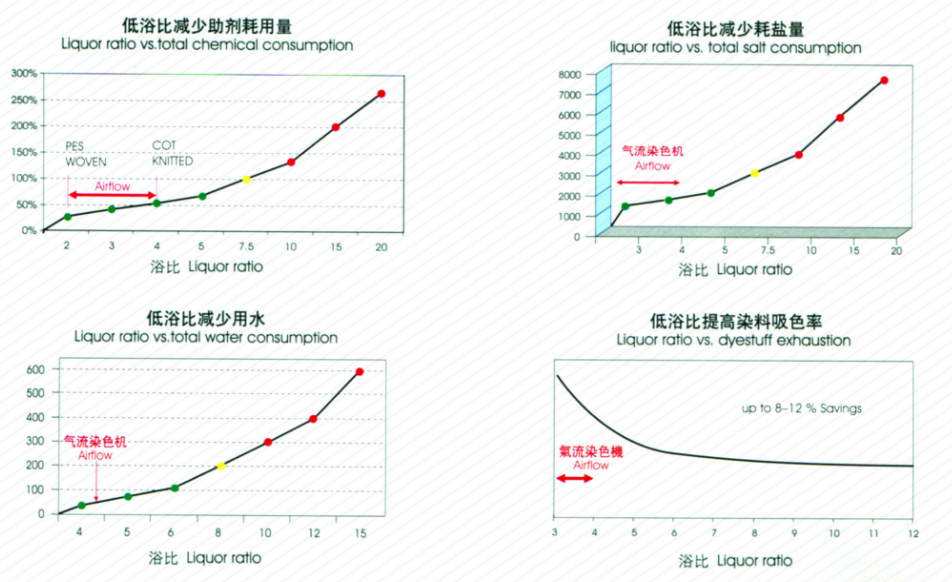

Advantages of the low liquor ratio of the RFP-type high-temperature air-flow atomizing dyeing machine

Features of the Dyeing Machine

1. There is no need to modify or change the equipment. Knitted fabrics, textiles of various weights, and their fiber blends can all be bleached and dyed.

2. Ultra - small liquor ratio: 1:3. Compared with traditional dyeing machines, it saves more than 50% of water, and significantly reduces the consumption of chemicals and auxiliary materials, thus saving dyes.

3. In terms of dyeing effect, the atomized airflow blows the fabric open, causing the fabric to constantly change its running state during the operation, which reduces creases.

4. The unique spray - washing method shortens the process time and achieves better cleaning results.

5. The fabric is conveyed under the power of airflow without hydraulic pressure, enabling the fabric to be dyed in saturated air.

6. The cold - water heating system saves the process time.

Standard Configuration

1. A specially designed nozzle, main cloth guide wheel, and three - phase motor, controlled by a frequency converter.

2. Cloth laying device with adjustable swing frequency.

3. Three - phase motor blower, controlled by a frequency converter.

4. Three - phase motor circulating pump, controlled by a frequency converter.

5. Each tube is equipped with a fabric running control and cloth seam detection device.

6. Lint inspection program.

7. Quantitative feeding device and proportional heating and cooling device.

8. The dosing tank is equipped with a dosing pump.

9. Cloth discharge motor, conveyor belt, and cloth folding device.

10. High - efficiency heat exchanger.

11. Fully automatic computer control with a SETEX controller.

12. Dual inlets and dual outlets.

13. High - temperature discharge device.

14. Analog water level control system.

Range of Fabric Varieties Adapting to

The air-flow atomization dyeing machine is suitable for all fabric varieties that can be dyed by general traditional dyeing machines, and it is especially suitable for high-quality and high-demand fabrics. For example:

1. Single-sided fabric with added yarn and spandex for elasticity.

2. Fine-count, compact and high-grammage plain weave fabric.

3. High-density pure cotton terry fabric.

4. Mesh fabric with double-ply yarns.
