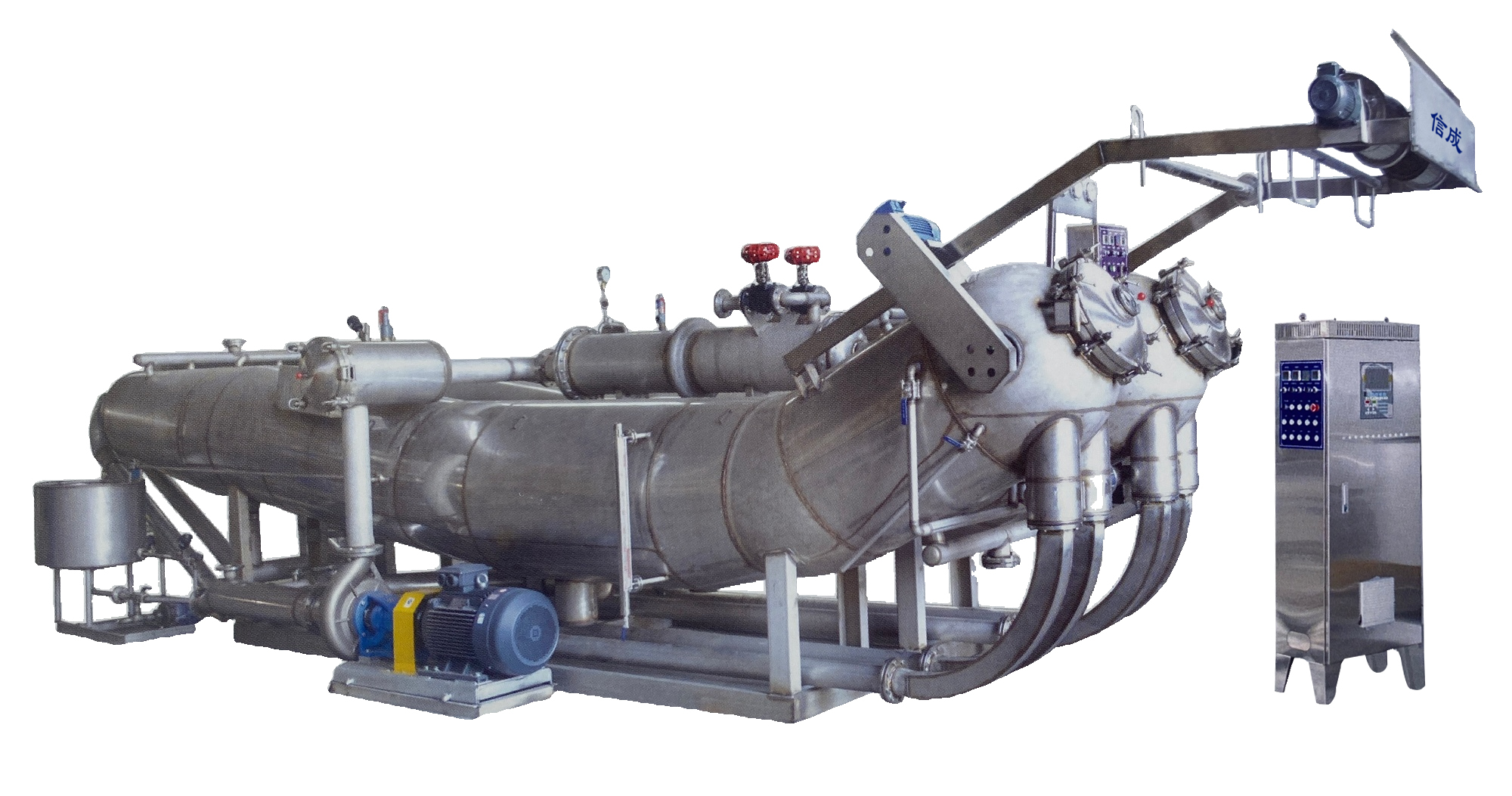

DRP-F High-temperature Dyeing Machine

The DRP-F type high-temperature dyeing machine is used for the dyeing, as well as the pre-treatment and post-treatment, of ultra-thin and thick woven and knitted fabrics, fabrics made of superfine fibers, composite fibers, natural fibers, etc. Its large cylinder structure has a large carrying capacity. The built-in double-channel fabric storage tank shortens the fabric path, increases the number of circulation cycles, and ensures uniform coloring. The operating height of the dyeing cylinder is low, the tension during operation is small, the liquor ratio is low, and the fluid circulation path features an optimized design.

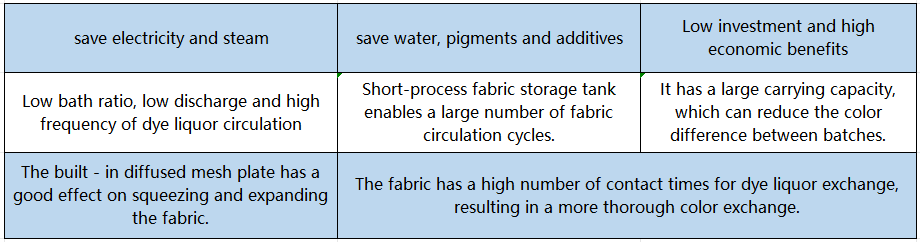

advantage

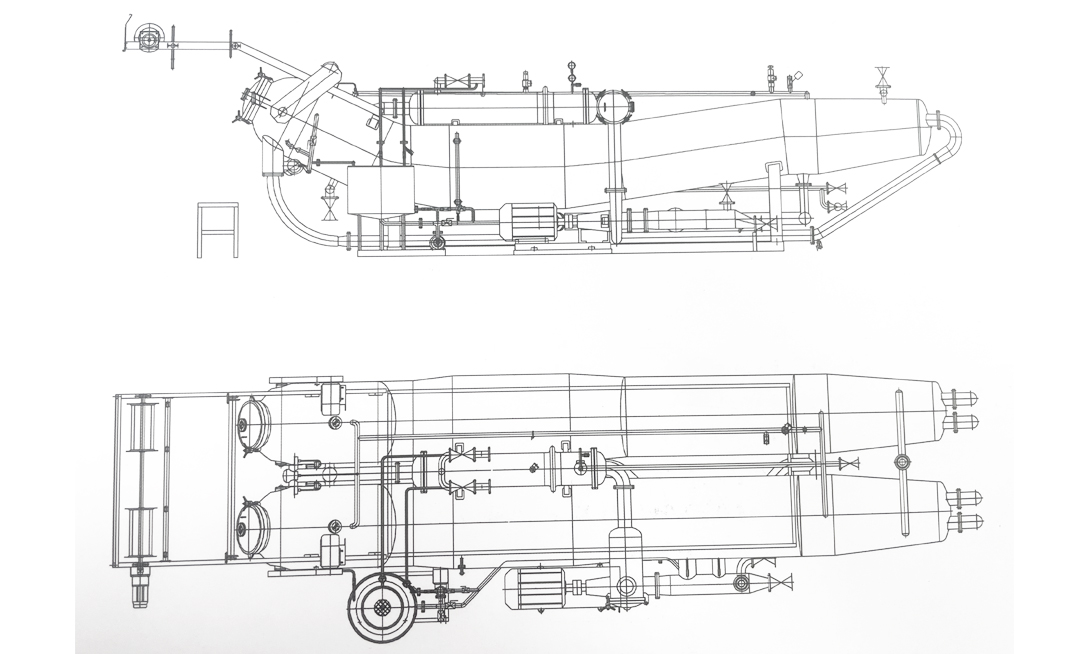

standard structure

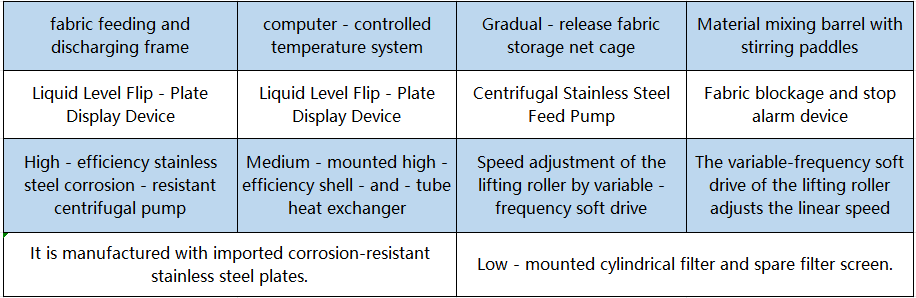

optional configuration

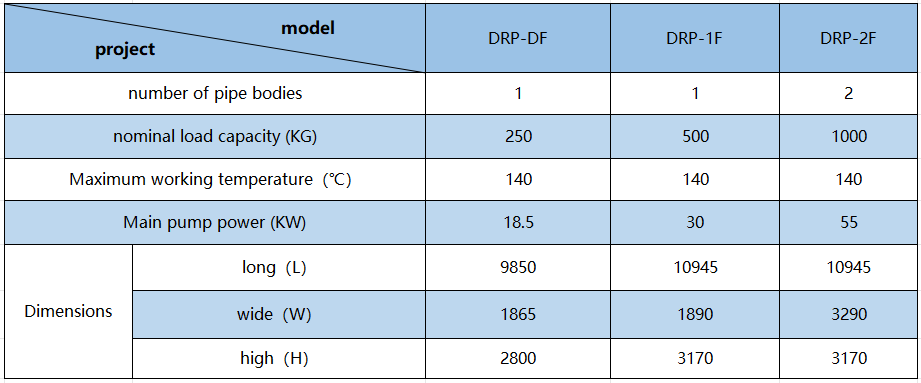

model specification
